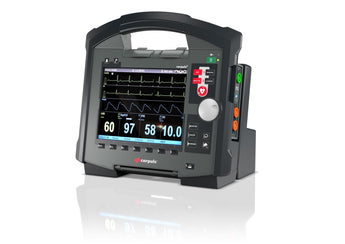

corpuls3 Touch

corpuls3 touch

A life-saving monitor defibrillator

Intl. Product Number: INTERNATIONAL-A01

Contact for Pricing

Product Details

The corpuls3 Touch has a unique and revolutionary device concept. It has a modular design and is divided into a monitor, patient box, and defibrillator/pacer.

Monitor

MAXIMUM MOBILITY, EASY TO USE, QUICK ASSESSMENT

The monitor unit displays all vital parameters and is the user interface of the corpuls3. The ergonomic handle and impact protection on all sides protect the screen from damage. It's low weight (2.7kg) and robustness make it easy to use under tough conditions.

  • Large color screen with touch (8.4″).
  • Display of up to 6 waveforms and 13 vital parameters.
  • Preview of all 12 ECG leads.
  • Views can be freely configured and given names.
  • Mobile data modem and WLAN or LAN port for data transfer / live streaming.
  • Wide printing (106 mm) with simultaneous real-time printing of up to 6 curves.
  • Seven function buttons for instant access to important menu items.
  • Intuitive operation with wheel for easy menu navigation.
  • 1-2-3 flow in the defibrillation modes.
  • Impact protection on all sides.
  • Weight: 2.7kg
  • Dimensions: 29.5 cm (H) × 30.5 cm (W) × 12 cm (D)

FULL CONTROL

Up to six waveforms and 13 vital parameters can be displayed simultaneously on the 8.4 inch screen. Fully configurable and nameable views, and blood pressure measurement with quality indicator.

FULL COMMUNICATION

There is an integrated connection to wireless internet and mobile data. This is very suitable for pre-hospital use and the telemetry solution corpuls.mission.
All data can be transferred and stored, processed and analyzed, or a diagnostic ECG can be sent for interpretation.

Patient Box

UNINTERRUPTED MONITORING FROM THE SCENE AND ALL THE WAY TO THE HOSPITAL

The patient box receives and transmits all measurements and signals. It is lightweight and, together with the associated cables and wires, can be placed on the patient during transport. In this way, the patient can be monitored continuously. (The patient box must be secured correctly during transport).

  • 12-lead ECG.
  • HES ECG analysis software.
  • Masimo Rainbow SET ® technology for measuring SpO2, Perfusion Index, SpCO, SpMet, and SpHb.
  • non-invasive blood pressure measurement, with interval measurement from SunTech ® .
  • Capnography capONE ® optical main flow measurement, also on non-intubated patients.
  • cor Patch CPR feedback sensor for CPR quality.
  • Two channels for temperature measurement.
  • Four channels for invasive pressure measurement.
  • Integrated display shows vital parameters, remaining time and alarms.
  • Acoustic signal.
  • Microphone for audio recording (configurable).
  • Data export via memory card (CompactFlash ® ).
  • PAX ® accessory bag for sensors and cables. Several sizes available.
  • Weight: 1.0 - 1.3 kg (without accessories)
  • Dimensions: 13.5 cm (H) × 26.5 cm (W) × 5.5 cm (D)

INTEGRATED SCREEN

Thanks to the screen on the patient box, you can see important vital parameters, heart rate or blood pressure directly on the patient box. This enables control even when you cannot see the main monitor directly, for example, during a transfer situation.

Defibrillator/ External Pacer

OPTIMAL ERGONOMICS AND FLEXIBILITY IN USE

The modular design of the corpuls3 allows the entire defibrillator module to be disconnected. This saves weight, and rhythm analysis and shocks can still be delivered remotely from the monitor part of the corpuls3.

  • Pre-connected  corPatch shock electrodes.
  • Biphasic discharge curve with impedance compensation.
  • 2 to 200 Joules, adjustable energy selection.
  • Semi-automatic and manual defibrillator.
  • Intuitive 1-2-3 flow.
  • AED protocol in line with current guidelines, can be updated and changed at any time.
  • Transcutaneous external pacer with FIX mode, DEMAND mode and overdrive mode.
  • Separate pocket for pre-connected  corPatch shock electrodes.
  • Can also be used with shock shovels or spoons.
  • Compact and lightweight.
  • Weight: 2.3 kg
  • Dimensions: 22 cm (H) × 28 cm (W) × 12 cm (D)

Sophisticated Energy Management

The best energy management is the one you don't have to think about.
This is one of the incremental differences that corpuls3 can make.
With a very long battery life (up to 10 hours as a compact device), you have freedom and plenty of time.

All three modules have identical batteries. In compact mode (when all the parts are connected), the modules share power with each other so that the batteries are discharged equally. This avoids one module having less power than the others. This smart power management means that you can use reserve power from the other modules if one part starts to run low just by connecting them together.

  • Battery capacity of up to 10 hours as a compact unit.
  • A complete charge of the batteries takes approximately two hours.
  • Display of remaining battery life on the monitor and in the display on the patient box.
  • Charging with both 12 Volt and 220 Volt via magnetic contact (MagCode).
  • Can be operated as a compact unit even if two of the batteries are discharged, as they borrow power from each other.

Remaining battery life is displayed in minutes.

Power supply via MagCode connector.


Versatile Parties

There are a variety of mounting brackets, including wall, floor, and bed. Mountings with swivel function and adapters for rails and other mountings are also available. The majority of the mountings are in line with the requirements of DIN EN 1789 and have been crash tested for up to 24G (10G is the requirement). Many of the mountings are also available both with and without power supply.

Monitor mount
  • Low installation depth, low weight.
  • Also fits monitor and patient box combinations.
  • 12 V DC, 100 V AC – 240 V AC (50 Hz – 60 Hz).

Patient box attachment
  • Can be supplied with mounting brackets for several common carrier types.
  • Easy assembly and unlocking.
  • 12 V DC, 100 V AC – 240 V AC (50 Hz – 60 Hz).

Compact unit/defibrillator attachment
  • Can be unlocked with one hand.
  • Self-locking after ten seconds.
  • 12 V DC, 100 V AC – 240 V AC (50 Hz – 60 Hz).

Versatile Applications

AMBULANCE SERVICE

In prehospital environments, there are many situations that require versatile and lightweight equipment, and that place high demands on design, function, and versatility. With its modular design, corpuls3 touch allows for a high degree of ergonomics, flexibility, and patient safety in almost any situation.

EXPEDITION/FIELD

Regardless of rough terrain, deep snow, or a sandstorm, corpuls3 touch will work in many different environments. And it provides comprehensive patient data in the most demanding environments and climates. That is why it is a preferred monitor/defibrillator in several places in the world for both military use, expeditions, emergency aid, offshore, and high mountain activities.

AIR AMBULANCE

Most civil and military air ambulances and rescue helicopters in Norway have chosen corpuls3 touch as their multimonitor, and it is no coincidence. Both functionality, technology, and physical properties make corpuls3 touch an excellent tool in air ambulances. The modularity makes it possible to carry out demanding rescue missions while maintaining good monitoring. It also provides a practical solution in a cramped helicopter cabin. For example, you can separate the patient box and monitor while moving the screen to a position that makes it easier to monitor the patient during other tasks.

HOSPITAL

In a hospital environment, the corpuls3 touch can be used in most situations due to its versatility. It is often used as a monitor for intensive care patients who are to be moved, or as an ECG machine. It is also commonly found in the emergency department as a multi-tool that is an important part of emergency preparedness.

Features & Benefits

Modularity:

  • Continuous monitoring, from the scene of the incident to the hospital.
  • Remote monitoring for use in high-risk infections or in CT.
  • Better ergonomics when the modules are divided making it easier to carry.
  • Improved patient safety because the monitor remains connected constantly and is not disconnected during transfer/evacuation/release.

SPECIFICATIONS:

  • Intuitive user interface.
  • Constant and immediate feedback on CPR quality through the corPatch CPR sensor.
  • 8.4-inch display with adjustable views.
  • Regular software updates.
  • Many relevant accessories, such as carrying cases, adapters, electrodes, etc.
  • High degree of robustness against water and dust (IP55).
  • Meets robustness requirements in line with selected parts of US military standard MIL-STD-810 G.
  • Meets robustness requirements in line with selected sections of international aerospace standards (RTCA DO 160 G).
  • Can be used with NVG equipment (night vision goggles).
  • Operating Temperature: -20 °C to +55 °C (basic functions: ECG monitoring, defibrillation)

ASSEMBLY:

  • Available assembly for all modules, or for the entire compact module.
  • Low profile and space-saving installations.
  • Most brackets are available both with and without power supply, and with a variety of different connectors.
  • Enables ergonomic placement of the device in vehicles while ensuring both operational reliability and safety.
  • Mounting bracket for the entire unit assembled with a self-locking mechanism.
  • Several different adapter solutions for cars, boats, and aircraft.
  • Stretcher attachments for a selection of the most common ambulance stretchers.
Product Contents
Details & Specs
Packaged 29.6 cm (H) × 30.5 cm (W) × 19.5 cm (D)
Weight 211.6 oz
